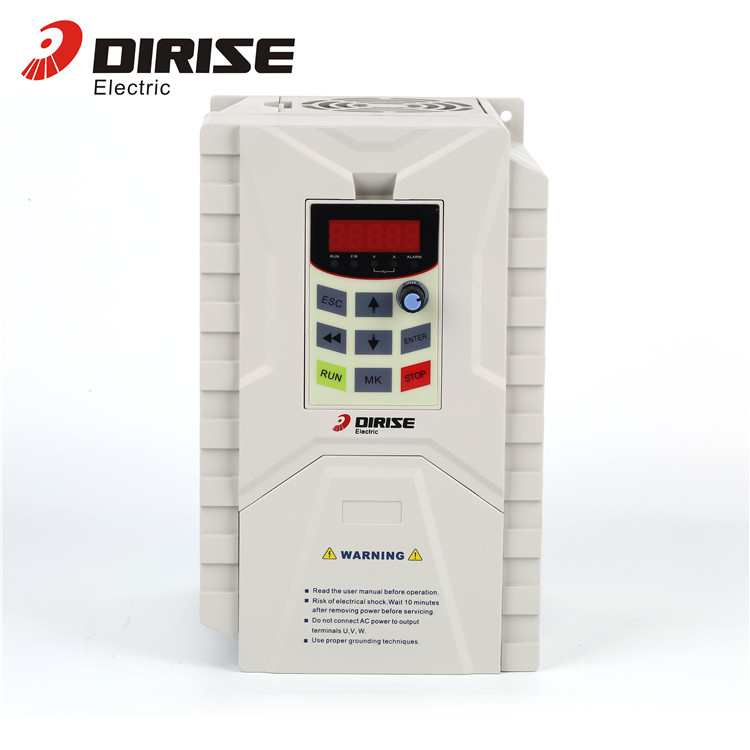

Biến tần DIRISE 1,5Kw
Bảng giá Biến tần DIRISE 2020
ES100-PV Auxiliary power 24V/50mA Compact Vectorial Inverter Triple phase 220V 20% 0.4~7.5KW for fan
Product Description
| Function description | Specification index | |
| Input capacity | Rated input voltage | Single-phase:220V±20%,triple-phase:220V±20%,triple phase:380V±20% |
| Rated input frequency | 50~60Hz (±5%) | |
| Output capacity | voltage | No higher than input voltage |
| Frequency | 0.00~300.00HZ | |
| Full-load output current | 100% rated current continuous output | |
| Maximum overload current | 150% of rated current for 1min, 180% of rated current for 2s | |
| Control functions | Control mode | No PG vector control, V/F |
| Operation mode | Keypad, terminal(2-thread, 3-thread), communication | |
| Frequency resolution | Digital given: 0.01Hz, analog given:0.1HZ | |
| Speed-regulating range | 1:50(V/F) 1:100(vector control) | |
| Speed control precision | ±0.3% | |
| Torque boost | Automatic torque boost, fixed torque boost,customized V/F curve | |
| Acceleration/deceleration time | 0.01S~600.00S | |
| Start-up torque | 150%/0.5Hz | |
| Automatic output voltage regulation | When AVR funtion is enabled, input voltage varies and output voltage basically remains the same;precision;rated input voltage±10V | |
| Automatic current amptitude limiting | Automatic output current limiting to prevent a trip due to overcurrent. | |
| DC braking | Braking frequency:0.10~60.00Hz,Braking time:0~30S,Braking current:0~150% rated current | |
| Signal input source | Digital, analog voltage, analog current, multi-speed, simple PLC, MODBUS communication, PID.Main frequency given, auxiliary frequency combination given and terminal switching. | |
| Input/output function Keypad | Auxiliary power | 10v/10mA 24V/50mA |
| Digital input terminals | Input impedance:27KΩ | |
| Input voltage range:0~30V, low level valid | ||
| Input frequency:≤1KHz | ||
| 6-CH can programmable input terminals which functions can set by function code. | ||
| Analog input terminals | 1-CH voltage source input 0~10V,1-CH can choose input 0~10V of voltage source or 0~20mA of current source. | |
| Input impedance: voltage source 510KΩ,current source 250KΩ | ||
| Resolution: 0.1% | ||
| Human-machine interface | 5-digit LED Nixie tube,8 keys and 5 indicator lights. | |
| Protection | Protection protection | Overcurrent,overvoltage,output short-circuit, input/output phase loss,overheat protection |
| Ambient | Installation site | indoor,altitude less than 1KM, away from dust, corrosive and inflammable gases. |
| Temperature/humid environment | -20℃~+65℃, 20%~90%RH(no condensation) | |
| Vibration | Less than 0.5g | |
| Others | Protection grade | IP 20 |
| Cooling way | Forced air-cooling | |
| Installation way | Wall-mounted | |
